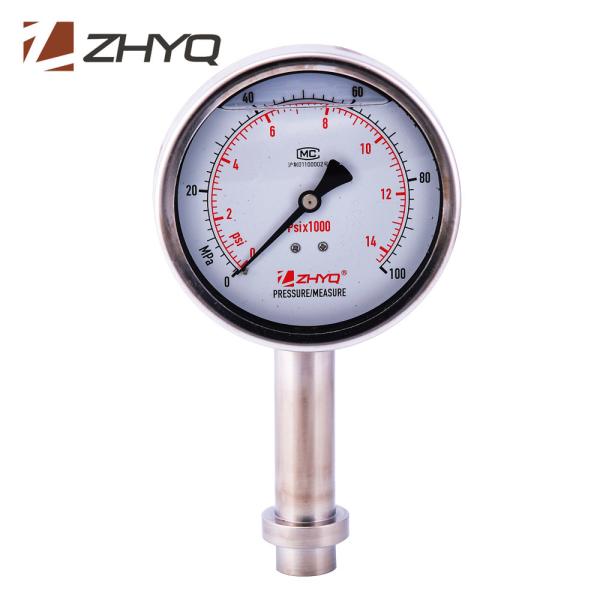

Petroleum Fiber Food Homogenizer Pressure Gauge Anti Corrosion Clamp Connection

Name: Petroleum Fiber Food Homogenizer Pressure Gauge Anti Corrosion Clamp Connection
Brand: ZHYQ
Price: 1 USD

Petroleum Fiber Food Homogenizer Pressure Gauge Anti Corrosion Clamp Connection Manufactures

Brand Name : ZHYQ

Model Number : PT124Y-622

Certification : CE, ROHS, SIL, etc

Place of Origin : China

MOQ : 1 piece

Price : Negotiate

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pieces per month

Delivery Time : within 7 days

Packaging Details : 1 piece per package or as customer's request

Range : 0~6bar~6000bar

Accuracy : ±1.6%FS

Dial Diameter : 100mm

Process Connection : M20×1.5;M18×1.5（Optional）

Contact Now

Petroleum Fiber Food Homogenizer Shockproof Corrosion Prevention Clamp Connection Diaphragm Pressure Gauge

Description

PT124Y-622 adopts high performance imported bourdon tube, designed with special shockproof configuration, high pressure endurance; it is suitable for the process pressure measuring in the petroleum and chemistry equipment, fiber equipment, food machinery and so on.

Aplication

Petroleum and chemistry equipment

Fiber equipment

Medicine

Food machinery

Feature

Cost performance is good

Mechanical design

Install easily

Good shockproof and corrosion prevention

High reliability and good repeatability

Specification

Range	0~6bar~6000bar
Accuracy	±1.6%FS
Configuration	Bourdon tube
Over Pressure	1.5×FS
Dial Diameter	100mm
Max DiaphragmTemperature	125℃
Process Connection	M20×1.5;M18×1.5(Optional)
