Petrochemical Engineering Differential Pressure Level Transmitter For Closed Tank

Name: Petrochemical Engineering Differential Pressure Level Transmitter For Closed Tank
Brand: ZHYQ
Price: 1 USD

Brand Name : ZHYQ

Model Number : PT124B-3503

Certification : CE,RoHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C

Delivery Time : 7-10 days

Packaging Details : Carton

Range : 0~100~500kPa

Accuracy : 0.075%FS

Output : 4-20mA,HART,RS485

Input voltage : 12~36V DC

Operate Temperature : -20~150℃

Overload pressure : 150%FS

Medium material : Stainless steel

Contact Now

Differential pressure level transmitter for closed tank in petrochemical engineering

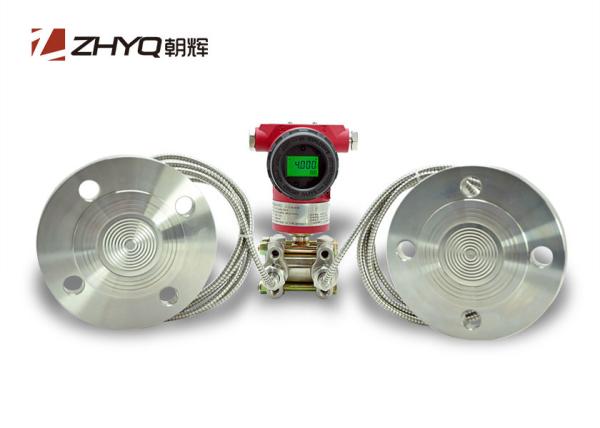

The diaphragm seal of PT124B-3503 differential double flange mounting remote pressure transmitter is used to prevent medium from entering directly into the pressure-sensing assembly of the pressure transmitter. It is connected to the transmitter using capillary filled with fill fluid, such as silicon oil.

The model PT124B-3503 can be used to measure liquid, gas, or stem flow, as well as liquid level, density and pressure. It outputs a 4 to 20mA DC HART signal corresponding to the measured pressure differential. The model PT124B-3503 also features remote setup and monitoring though communication with the model RST375 TERMINAL or RSM100 Modem. PT124B-3503 with span range (non migration) is 0 to 1KPa to 2MPa, and the rated pressure of the liquid level flange is 1.6/4MPa, 6.4MPa, 10MPa, 150psi, 300psi or 600psi.

Features

Adopts global leading high precision silicon transducer
Strong anti-jamming performance
Accuracy +/-0.075%
Advanced stability and static pressure performance
Error less than +/-0.1%/10MPa
Internal integrated high sensitivity temperature transducer
Perfect thermal drift
Fast response time
Remote Capillary length : 0~10m

Specification

Measurement parameter	Differential pressure, liquid level
Measurement range (Non migration)	0-1KPa-2MPa
Accuracy	+/-0.1%
Wetted parts material	SS304,SS316L, Hastelloy C, tantalum, PTFE
Output	2-wire 4-20mA, HART communication optional, linear output or square root output available
Ambient temperature limited	Lowest: depending on the filled liquid , Highest: 85℃ -20~65℃ (with LCD display, fluorine rubber O-ring)
temperature limited	-30~400℃
Protection grade	IP67
Electrical connector	M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm²cable
Process connector	1.5”clamp , DN25, DN50, DN80 customized
